Developer Guide
Acknowledgements
Project Duke’s GitHub repository is available here.
Design & implementation
The basic data structure is an abstract class Task, and it has three main types (child class) :
T-Todo- a simple todo task without any datetime neededD-Deadline- a deadline task with a /by datetime neededE-Event- a event task with a /at datetime needed
e.g.
[D][X] quiz submission (by: Oct 1 2021 23:59)
[x] is the status of the task.
TaskList is the main list that contains all the Task, it contains some basic method to operate on a task, e.g.
removeTasks(List<Task> toRemove)which is used to pass in a list of tasks that need to be deleted and then delete from the list.
As this a CLI based project, another main section is the Command, all the sub commands will be
AddCommandClearCommandDeleteCommandDoneCommandExitCommandFndCommandHelpCommandIncorrectCommandListCommandSortCommandUpdateCommandViewDoneCommand
The above commands will extend to Command class.
Parser Class is used to handle the input that user entered to make sure can generate the correct command based on the input.
Storage Class have two main function load() and save(), which is used to load and save the task into a .txt file

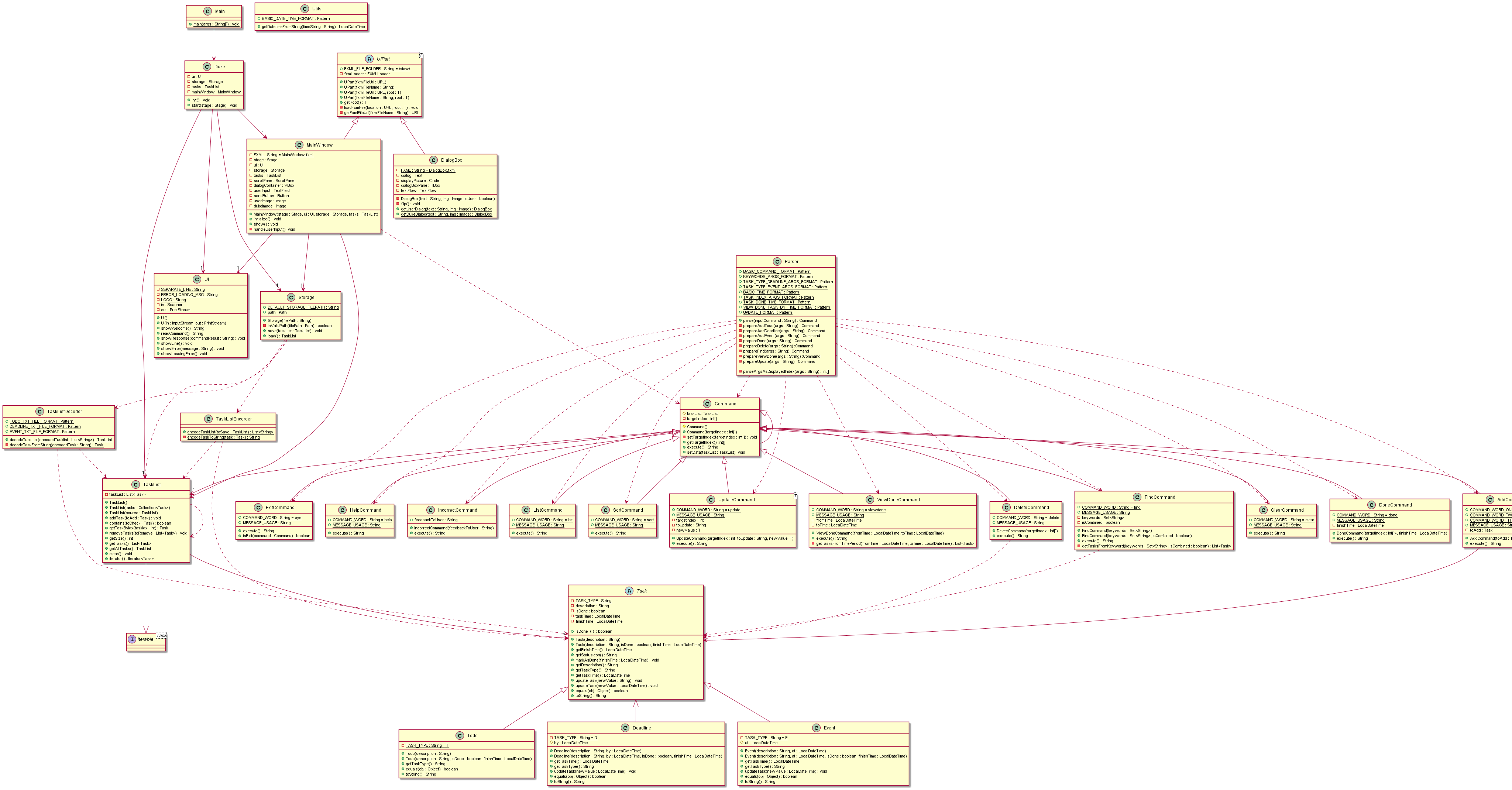

UML diagram
whole class diagram
User Stories
| Version | As a … | I want to … | So that I … |
|---|---|---|---|
| v1.0 | Todo app user | add a task to the list with different task types | can have a list to help me memory the things need to do |
| v1.0 | Todo app user | be able to delete tasks | will not see too many tasks in the list |
| v1.0 | Todo app user | mark a task as done status | can know that if I still have any outstanding tasks in the list |
| v1.0 | new user | have a command that can show all the syntax instructions | can know what I need to type to achieve what I want |
| v1.0 | new user | receive the notification when I type a wrong command | can know where I do wrong |
| v1.0 | Todo app user | list down all my tasks | can have a basic view of the tasks |
| v1.0 | forgetful user | find the tasks based on the keywords | will not lost when have too many tasks in the list |
| v1.0 | Todo app user | clear all the tasks in the list | can start from the beginning instead of delete one by one when I don’t need to go through the existing tasks anymore |
| v1.0 | Todo app user | view the tasks that have been done already based on specific period | can have a basic statistic or dashboard view |
| v2.0 | Todo app user | sort the tasks by the finish date descending order in the list | can see the outstanding tasks before the finished tasks |
| v3.0 | Todo app user | update the tasks when necessary | don’t need to delete the whole task when I try to modify anything |
Non-Functional Requirements
- The jar file should work on any mainstream OS as long as it has Java 11 or above installed.
- program should be able to automatically generate the txt file based on the storage path instead of crash when no existing txt file
- The application should be faster for those users who can type fast, compared with using mouse.
